| Product Category: | Video Wall Mount |
| Rank: | Standard |
| Material: | Steel |
| Surface Finish: | Powder Coating |
| Color: | Matte Black |
| Color: | Matte Black |
| Dimensions: | 1009x540x49~223mm (39.7"x21.3"x1.9"~8.8") |
| Fit Screen Size: | Suitable For Most 46" ~ 55" Screen |
| VESA Compatible: | 200x200,300x200,400x200, 300x300,400x300,400x400,600x400mm |
| Max. Mounting Hole: | 600x400mm |
| Weight Capacity(Per Screen): | 35kg (77lbs) |
| Screen Qty: | 1 |
| Strength Tested: | 4 Times Approved |
| Profile: | 49~223mm (1.9"~8.8") |
| Fine Adjustment(Depth/Height): | 5mm/12mm (0.2"/0.47") |
| Installation: | Solid Wall |
| Direction Indicator: | Yes |
| Cable Management: | No |
| Accessory Kit Package: | Normal/Ziplock Polybag, Compartment Polybag |
| Instruction Manual Included: | Yes |
| Magnetic: | No |
| Screw Kit for Samsung TV: | Yes |

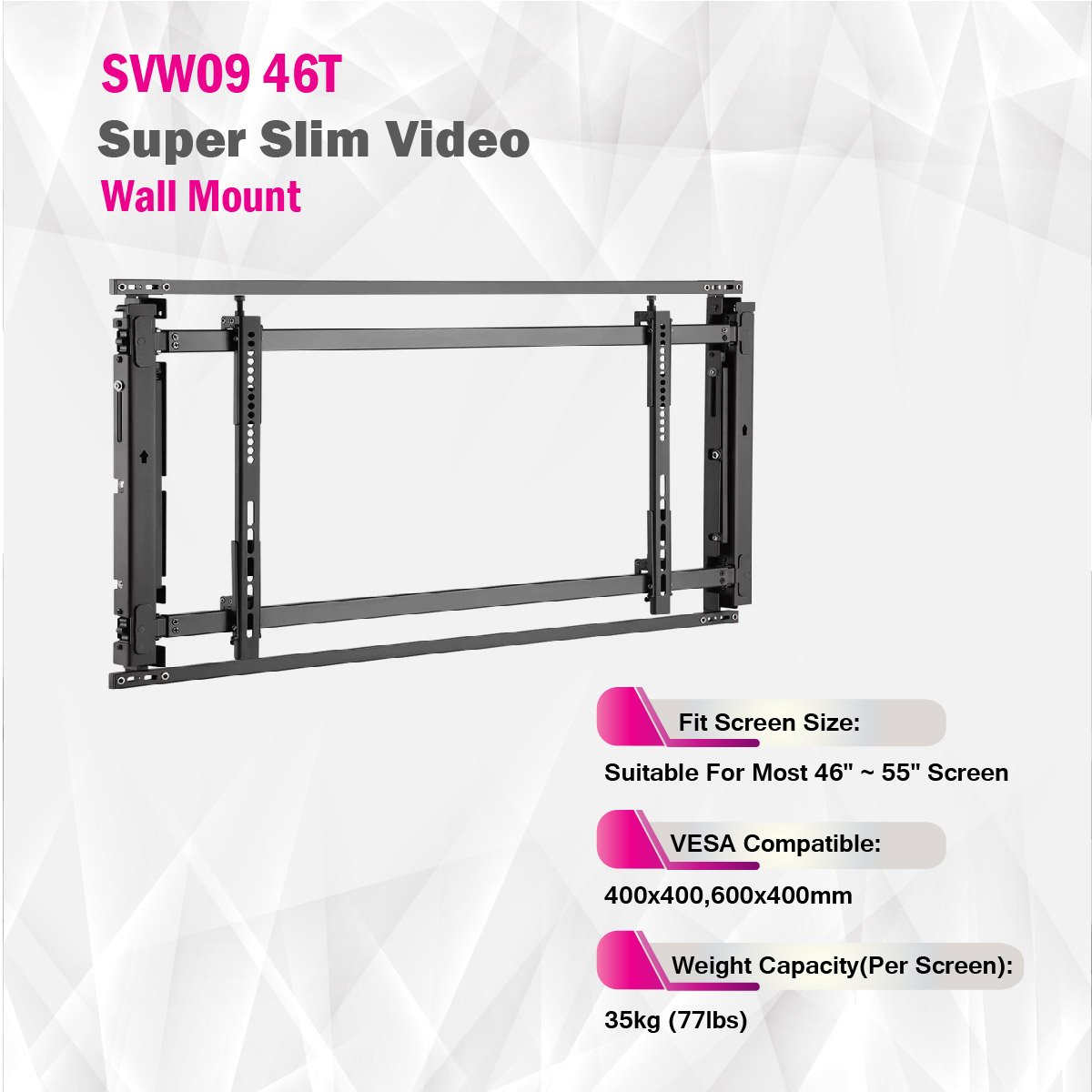

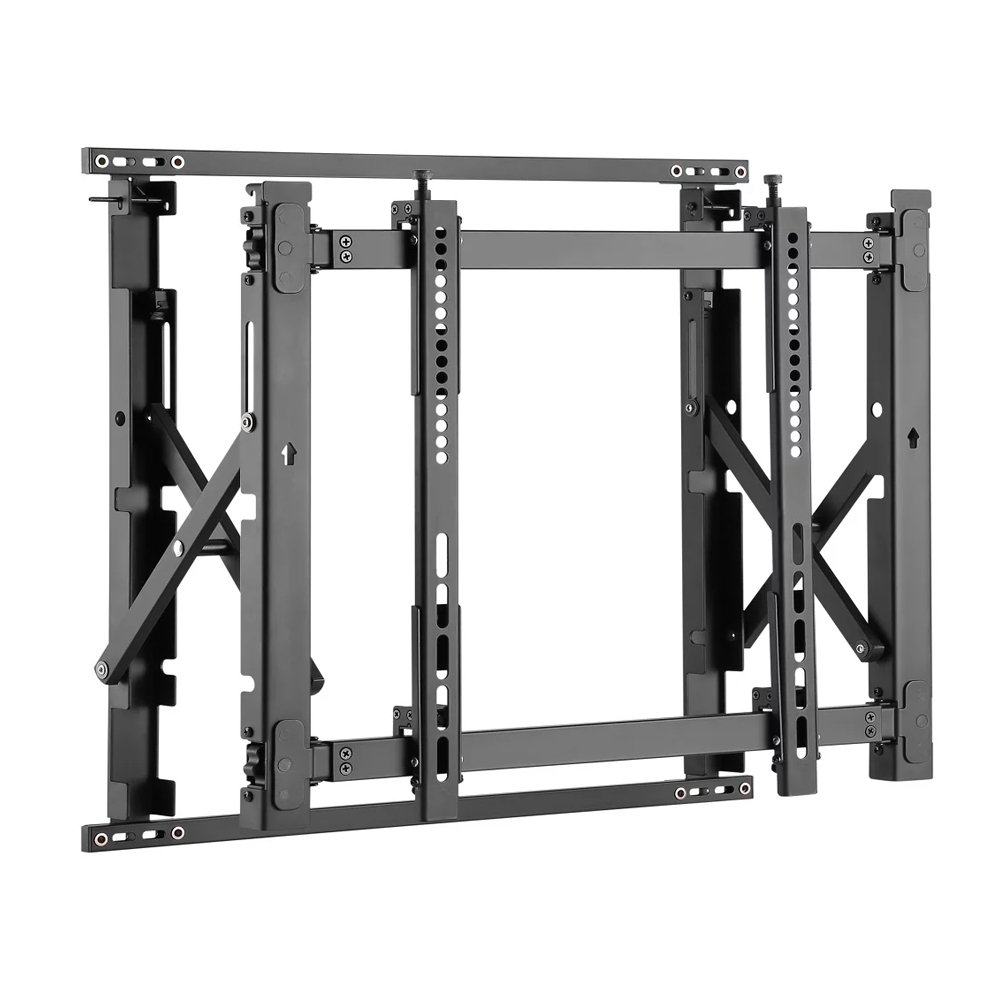

With a super slim design, SKILL TECH’s SVW09 46T series provides an elegant appearance for digital signage displays. With adjustable settings on different axis, it is easy to get a seamless alignment for multiple-screen mounting. Great for landscape and portrait screen orientation in video wall applications, it is a one-fit-all and perfect solution for commercial and public displays.
Slim Design: provides low profile.
Precise Display Alignment: height/depth adjustment for seamless digital signage.
Portrait or Landscape Viewing: one solution fits any installation.

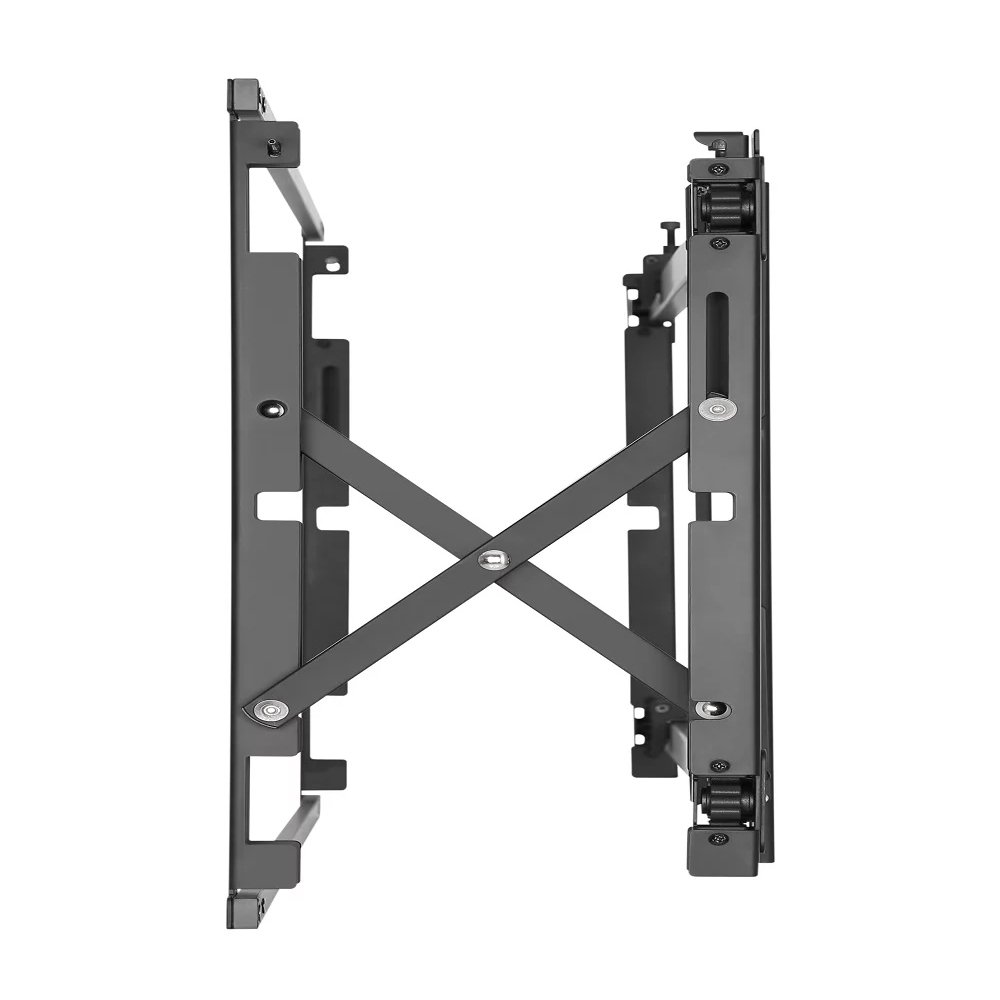

Pop-Out Extension: provides quick access for installation and maintenance.
Lateral Shift Brackets, Video Wall Mount, Slim TV Wall Mount, Digital Signage Display Mount, Video Wall Mounting System.
| Quantity per Carton | 1 units |
| Gross Weight | 11.5 |
| Net Weight | 9.3 |
| CBM per Carton | 0.060 |
| Carton Dimension | 110.5X63.5X8.5 |
