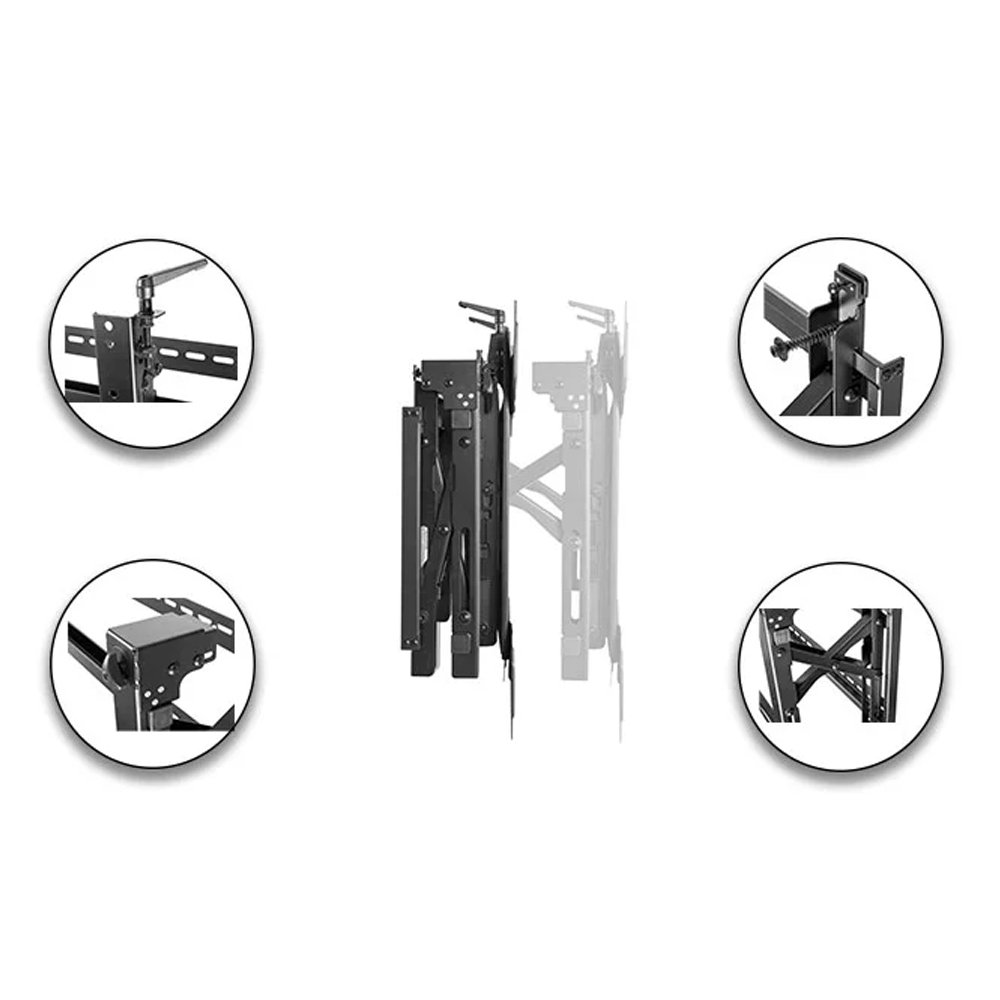

SVW03 64T Pop-Out Video Wall Mount

Product Category: Video Wall Mount
Rank: Premium
Material: Steel
Surface Finish: Powder Coating
Fit Screen Size: Suitable For Most 45″ ~ 75″ Screen
Fit Curved TV: No
Weight Capacity: 70kg (154lbs)
Strength Tested: 4 Times Approved
Mounting Hole Pattern : Universal
VESA Compatible: 200×200,300×300,400×200,400×400,600×400
Max. VESA: 400×600mm
Panel Type: Detachable Panel
Screen Freely Tilting: No
Tilt Range: +3° ~ -5°
Screen Level: +3° ~ -3°
Profile: 152-315mm (6″-12.4″)
Installation: Single Stud
Wall Plate Type: Fixed Wall Plate
Freely Height Adjustable: No
AV Component Shelf: No
Cable Management: No
Anti-theft: Yes
Motorized: No
By Function: Pivot,Micro adjustment
Bubble Level Mount: No
Accessory Kit Package: Compartment Polybag
Instruction Manual Included: Yes

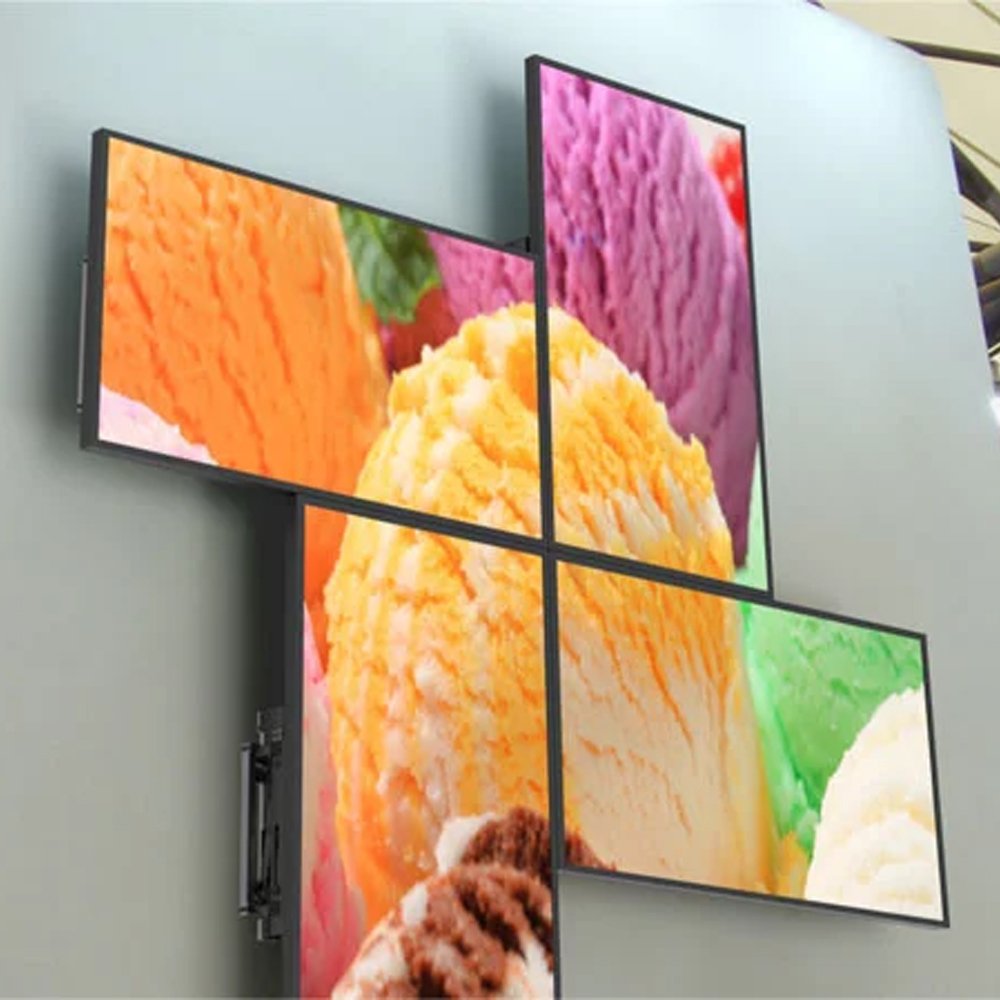

The SVW03 64T is a premium pop-out video wall mount designed to elevate your video wall experience. It is crafted from durable steel with a sleek powder coating finish, ensuring both strength and style in one package. This mount is suitable for most screen sizes ranging from 45" to 75", accommodating a wide range of displays.With a remarkable weight capacity of 70kg (154lbs) and having undergone strength testing four times for approval, you can trust in the sturdiness and reliability of this mount. It supports various mounting hole patterns, making it compatible with universal VESA patterns, including 200×200, 300×300, 400×200, 400×400, and 600×400mm. This versatility ensures compatibility with a variety of displays.The SVW03 64T features a detachable panel, allowing for easy installation and maintenance. While it doesn't offer screen tilting, it does provide precise micro adjustments to achieve the perfect alignment for your video wall. The tilt range is +3° to -5°, and the screen can be leveled between +3° and -3°.

Product Category: Video Wall Mount
Rank: Premium
Material: Steel
Surface Finish: Powder Coating
Fit Screen Size: Suitable For Most 45″ ~ 75″ Screen
Fit Curved TV: No
Weight Capacity: 70kg (154lbs)
Strength Tested: 4 Times Approved
Mounting Hole Pattern : Universal
VESA Compatible: 200×200,300×300,400×200,400×400,600×400
Max. VESA: 400×600mm
Panel Type: Detachable Panel
Screen Freely Tilting: No
Tilt Range: +3° ~ -5°
Screen Level: +3° ~ -3°
Profile: 152-315mm (6″-12.4″)
Installation: Single Stud
Wall Plate Type: Fixed Wall Plate
Freely Height Adjustable: No
AV Component Shelf: No
Cable Management: No
Anti-theft: Yes
Motorized: No
By Function: Pivot,Micro adjustment
Bubble Level Mount: No
Accessory Kit Package: Compartment Polybag
Instruction Manual Included: Yes

TV Wall Mount,TV Bracket,Heavy-Duty TV Wall Mount,Tilting TV Wall Mount,Low Profile TV Wall Mount, Ergonomic Mount,Video Wall Mount,Digital Signage Wall Mounts
