SH 460P Aluminium Slim Sliding Full-Motion Tv Wall Mount

Product Category:	TV Wall Mount
By Function:	Full Motion
Rank:	Premium
Mounting Hole Pattern :	Universal
Material:	Aluminium, Steel
Color:	Black
Product Size With Open Position:	680x824X430mm
Fit Screen Size:	Suitable For Most 37" ~ 70″ Screen
Installation:	Solid wall, Single Stud
Weight Capacity:	40kg
Strength Tested:	4 times approved
Max. VESA:	600x400mm
VESA Compatible:	200×200,300×300,400×200,400×400,600×400
Tilt Range:	+8° ~ -12°
Screen Level:	+3° ~ -3°
Swivel Range:	+90° ~ -90°
Profile:	45-680mm
Cable Management:	Yes
Screen Freely Tilting:	Yes
Fit Curved TV:	Yes
Installation:	Solid Wall,Single Stud
Panel Type:	Detachable Panel
Certification:	GS UL
Instruction Manual Included:	Yes

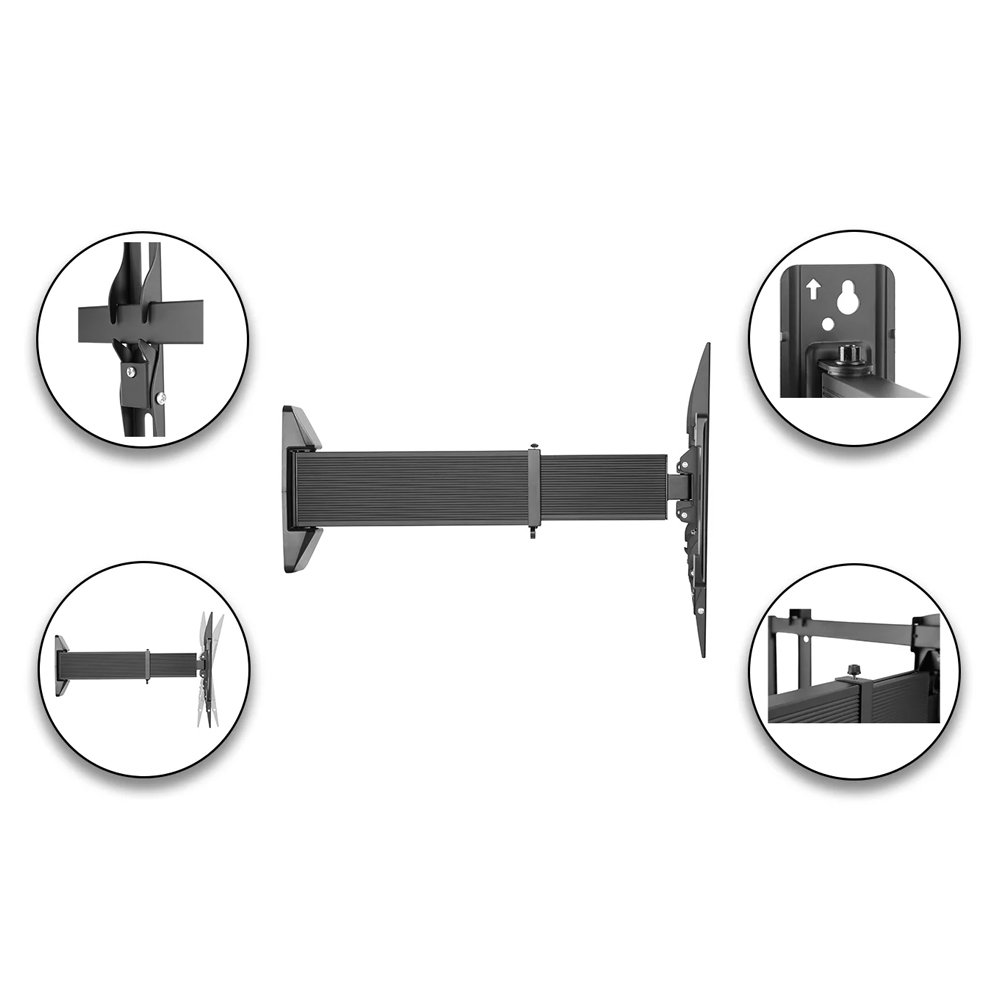

The innovative SH 460P Sliding full-motion mount places 37"-70" curved & flat panel TVs just 45 mm from the wall, yet still allows full-motion capabilities. It can support up to 40kgs/88lbs and has also passed a four-times weight test. This mount slides to extend out up to 680mm from the wall and allows a large TV to swivel left and right up to 90 degrees. Post-installation level adjustment allows the TV to “roll” up to 3º clockwise and counterclockwise to ensure it is perfectly level. The SH 460P always has a finished appearance with a decorative cover that conceals assembly and mounting hardware.

Easy Assembly: Installation is as easy as 1-2-3.

Sliding Long Arm Offers maximum viewing flexibility.

Built-In Level Adjustment: ensures perfect positioning.

Decorative Covers: for a more elegant look.
