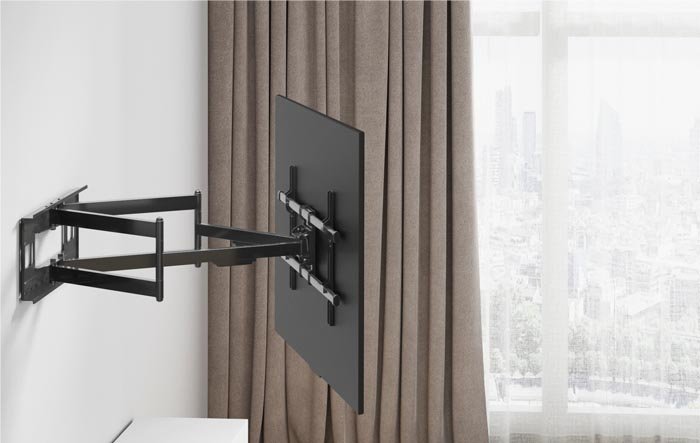

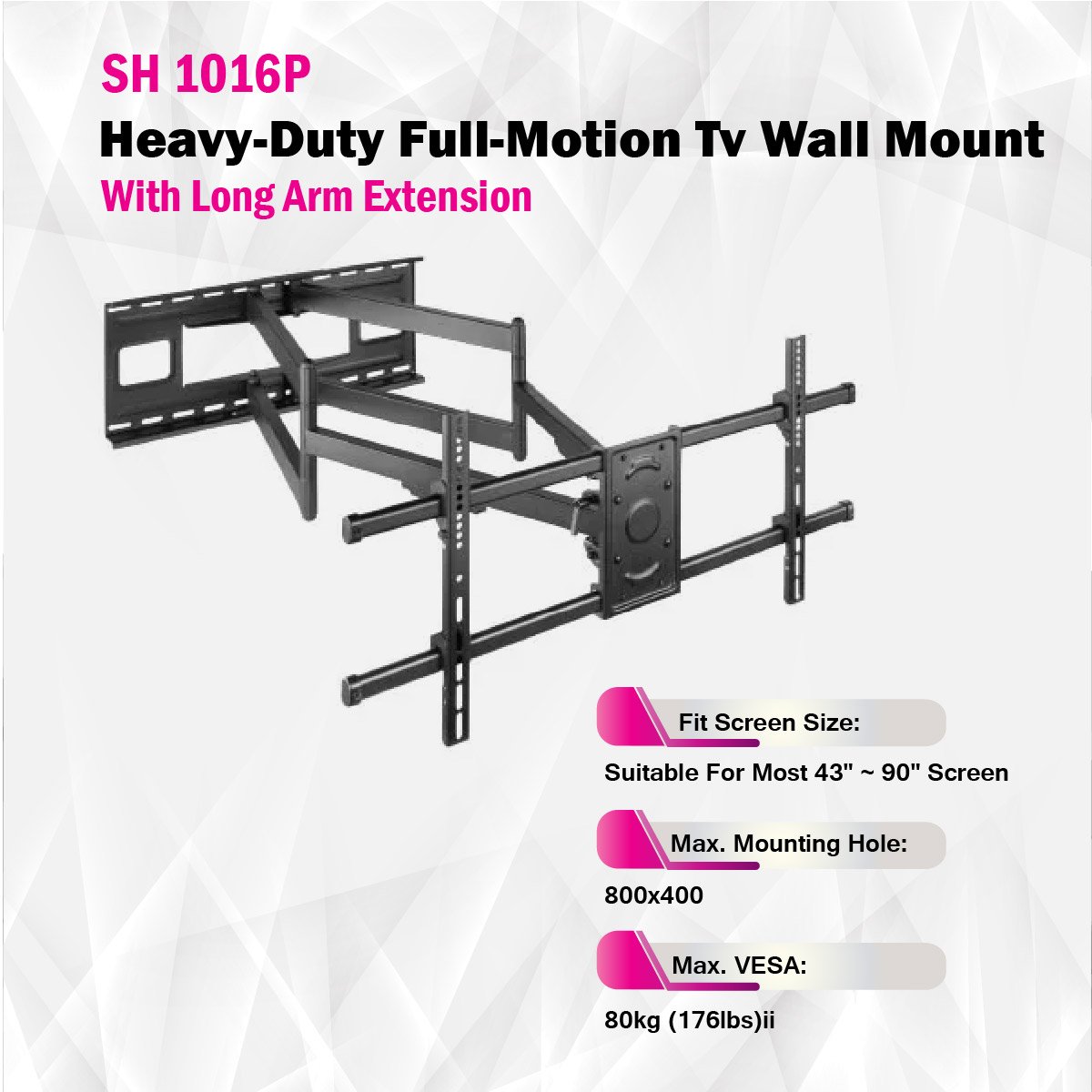

SH 1016P Heavy-Duty Full-Motion Tv Wall Mount With Long Arm Extension

Product Category:
Full-Motion TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=1.5mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet,VESA Panel THK=0.059" cold-rolled sheet,Wall Plate THK=0.12" pickling sheet)
Pipe Size: 40x25x1.5mm Square Steel Tube,50x25x1.5mm Square Steel Tube (1.6"x0.98"x0.059" Square Steel Tube,2"x0.98"x0.059" Square Steel Tube)
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 1044x885x430mm (41.1"x34.8"x16.9")
Fit Screen Size: Suitable For Most 43" ~ 90" Screen
Fit Curved TV: Yes
Mounting Hole Pattern : VESA Only
VESA Compatible: 200x200,300x200,400x200,300x300,
400x300,400x400,600x400,800x400
Max. Mounting Hole: 800x400
Weight Capacity: 80kg (176lbs)
Strength Tested:
3 Times Approved
Profile: 69-1044mm (2.7"~41.1")
Tilt Range: +5° ~ -15°
Swivel Range: +60° ~ -60°
Screen Level: +3° ~ -3°
Screen Freely Tilting: Yes
Installation: Solid Wall,Double Stud(406mm/450mm/600mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Direction Indicator: Yes
Cable Management: Yes
Bubble Level: Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package: Compartment Polybag

The SH 1016P Heavy-Duty Full-Motion TV Wall Mount with Long Arm Extension is a robust and versatile mounting solution for your TV. Built with high-quality steel and featuring a durable powder-coated finish in fine texture black, this wall mount is designed to last. It accommodates a wide range of TV sizes, suitable for screens from 43 to 90 inches, including curved TVs. The mounting hole pattern supports VESA standards, with compatibility for sizes such as 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400, and 800x400mm, with a maximum mounting hole size of 800x400mm.With a remarkable weight capacity of 80kg (176lbs), this wall mount has undergone rigorous strength testing, receiving approval three times over to ensure the safety of your TV. The adjustable profile ranges from 69mm to 1044mm (2.7"~41.1"), allowing you to achieve the perfect viewing height and customize the placement according to your preferences. It offers a tilt range of +5° to -15°, enabling you to adjust the screen angle for an optimal viewing experience. The impressive swivel range of +60° to -60° provides flexibility in positioning the TV at various angles, and the screen level feature, with a range of +3° to -3°, ensures precise alignment.This wall mount also supports screen freely tilting for added convenience. Installation options include solid wall and double stud (406mm/450mm/600mm), providing flexibility to suit your needs. The panel is detachable for easy setup, and the wall plate type is fixed for stability. Additional features include a direction indicator and cable management to keep your setup organized and a hook-on bubble level included in the components package for accurate installation. Elevate your home theater experience with this heavy-duty, long-arm extension TV wall mount.

Product Category:

Full-Motion TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=1.5mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet,VESA Panel THK=0.059" cold-rolled sheet,Wall Plate THK=0.12" pickling sheet)
Pipe Size: 40x25x1.5mm Square Steel Tube,50x25x1.5mm Square Steel Tube (1.6"x0.98"x0.059" Square Steel Tube,2"x0.98"x0.059" Square Steel Tube)
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 1044x885x430mm (41.1"x34.8"x16.9")
Fit Screen Size: Suitable For Most 43" ~ 90" Screen
Fit Curved TV: Yes
Mounting Hole Pattern : VESA Only
VESA Compatible: 200x200,300x200,400x200,300x300,
400x300,400x400,600x400,800x400
Max. Mounting Hole: 800x400
Weight Capacity: 80kg (176lbs)

Strength Tested:

3 Times Approved
Profile: 69-1044mm (2.7"~41.1")
Tilt Range: +5° ~ -15°
Swivel Range: +60° ~ -60°
Screen Level: +3° ~ -3°
Screen Freely Tilting: Yes
Installation: Solid Wall,Double Stud(406mm/450mm/600mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Direction Indicator: Yes
Cable Management: Yes
Bubble Level: Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package: Compartment Polybag

TV Wall Mounts, TV Mounts, Wall Mounts , TV Brackets , Low Profile TV Wall Mount, Ergonomic Mount ,Monitor Mounts , TV Stand, Monitor Stand, TV Wall Mount In UAE , Quality TV Wall Mount,Full Motion Double Arm Mounts

Similar products

CBM Calculater
Quantity per Carton 1 units
Gross Weight 17.8
Net Weight 16.8
CBM per Carton 0.043
Carton Dimension 114x39.5x9.5
