SH 360R 360° Rotate Wall Mount For Flat Panel Display TV Wall Mount

Product Category:	Digital Signage Mount
Rank:	Standard
Material:	Steel,Plastic
Metal Sheet Thickness:	VESA Panel THK=2mm cold-rolled sheet,Bracket Arm THK=2mm cold-rolled sheet,Wall Plate THK=3mm hot-rolled sheet (VESA Panel THK=0.079" cold-rolled sheet,Bracket Arm THK=0.079" cold-rolled sheet,Wall Plate THK=0.12" hot-rolled sheet)
Surface Finish:	Powder Coating
Color:	Fine Texture Black
Dimensions:	51x642x440mm (2"x25.3"x17.3")
Fit Screen Size:	Suitable For Most 37" ~ 70" Screen
Mounting Hole Pattern :	VESA & Universal
VESA Compatible:	200x200,300x300,400x200,400x400,600x400
Max. VESA:	600x400mm
Weight Capacity:	50kg (110lbs)

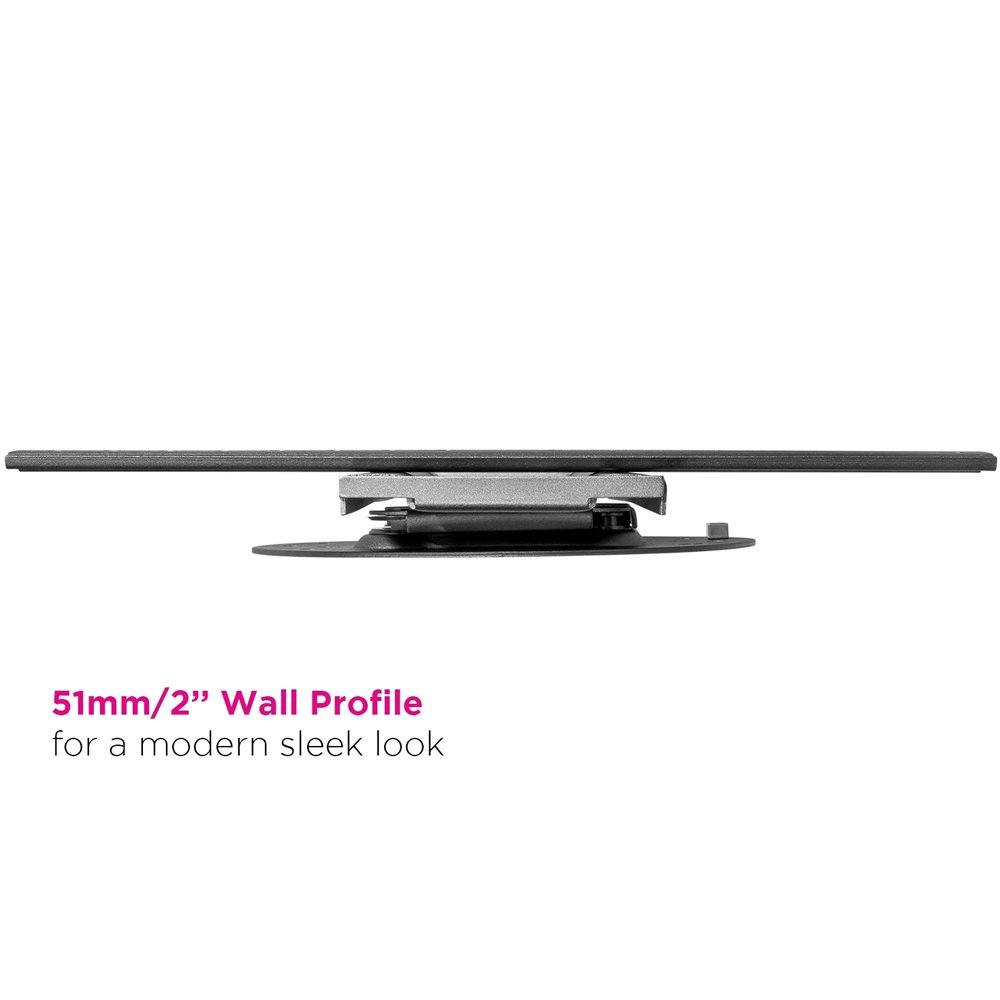

Profile:	51mm (2")
Screen Rotation:	360°
Installation:	Solid Wall,Single Stud
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
Bubble Level:	Built-in Bubble Level (Integrated on Wall Plate)

This 360° rotating, universal display mount holds displays up to 50kg /110lbs. It typically fits most 37"-70" flat panel displays. With 360° of continuous rotation, the flat panel can be effortlessly displayed in landscape or portrait positions. The mount is a two-piece design for easy installation. Slide-in VESA plate provides easy access for attachment and detachment. Integrated bubble level assures easy installation alignment.

Pop-Out Extension: provides quick access for installation and maintenance.

Built-In Level Adjustment: ensures perfect positioning.

Anti-Theft Locking Hole: for additional security preventing any unwanted removal (extra padlock required).

Lateral Shift Brackets: enable fast alignment.

Connecting wall plates makes it easy to create longer menu boards.

Pop-Out Lock System: ensures safety by reducing the possibility of accidental pop-out.
